AR100C

The AirRobot AR100C is a rapidly deployable VTOL Micro Unmanned Aerial System (weight < 2.2lbs) with virtually silent electrical propulsion.

View cart

Description

AR100C AirRobot  is a rapidly deployable VTOL Micro Unmanned Aerial System with virtually silent electrical propulsion.  The primary concept of operation for the AR100C AirRobot is close range, stealth Intelligence, Surveillance and Reconnaissance at low altitude.  It is a slight variation of the AR100B, a system of which 400 systems are used world wide in military and non-military operations.  Weight < 2.2lbs.

AR100C AirRobot key features:

  • Vertical take off and landing
  • Electrical propulsion for virtually silent operation
  • Hover and stare with “steady eye on target” with hands off GPS auto positioning functionality
  • Assisted tele operation and way-point programmed flight
  • Precise maneuvering for operation in extreme proximity to the area of interest
  • Stable close to ground operation at altitudes < 2 ft
  • Out of line of sight flight through video (video game like control for easy learning)
  • Modular Payloads to meet different mission needs e.g. day/night/IR/radiation sensors/high res still cameras
  • Max. Payload 0.5 lbs.
  • One man dismounted operation or vehicle based

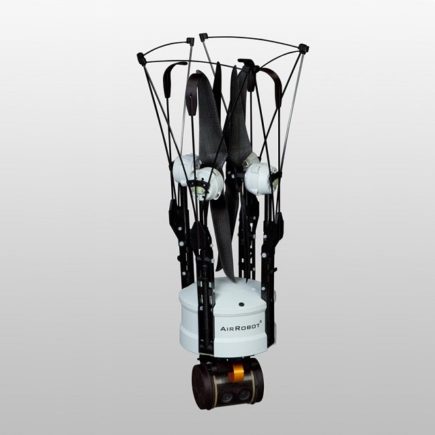

  • Collapsible airframe for compact and effortless transport
  • Deployment time < 1 min
  • Gross weight 2.2 lbs. (Unit incl. battery)
  • 18 lbs. packed including spares and GCS
  • Man portable and backpack able
  • Extensive safety systems



Product Data Sheet + PDFs:

AR100C Data Sheet

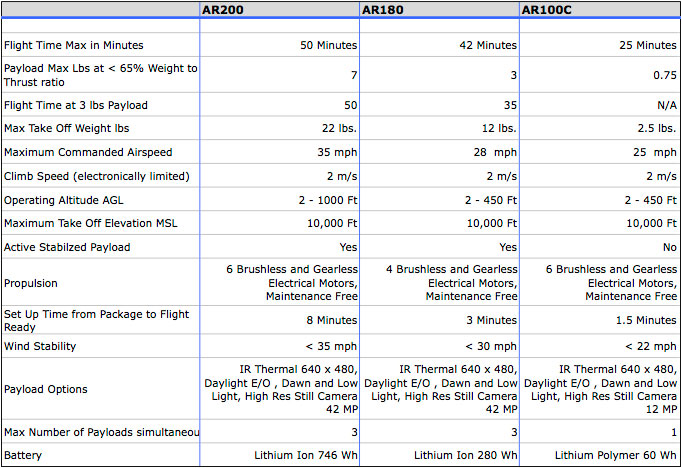

AirRobot Systems’ Comparison:

Spec-and-Comp-Sheet-JPG

Specifications
Performance
Max. Airspeed 28 mph
Cruise Speed 12 mph
Operating Altitude 2 to 450 ft. AGL
Max Altitude 1000 ft
Max climb speed 2 m/s (limited)
Max take off elevation 10000 ft MSL
Electrical Propulsion System
Lithium polymer batteries 14.8 V 4.0 Ah interchangeable
Recharging time 2 h min for full capacity
electrical motors 4 Brushless and gearless
Max. rpm 2300
Environmental limitations
Wind Speed max. 20 – 24 mph (regular operator)
Temperature 30oF –115oF; 100% humidity
Can’t operate in Ice and rain
Can’t operate with Presence of strong magnetic fields
