HV9767 Coreless High Torque Digital Servo
$106.86
HV9767 Coreless High Torque Digital Servo; recommended for 500 class helicopter cyclic applications.
- Description
- Specifications
Description

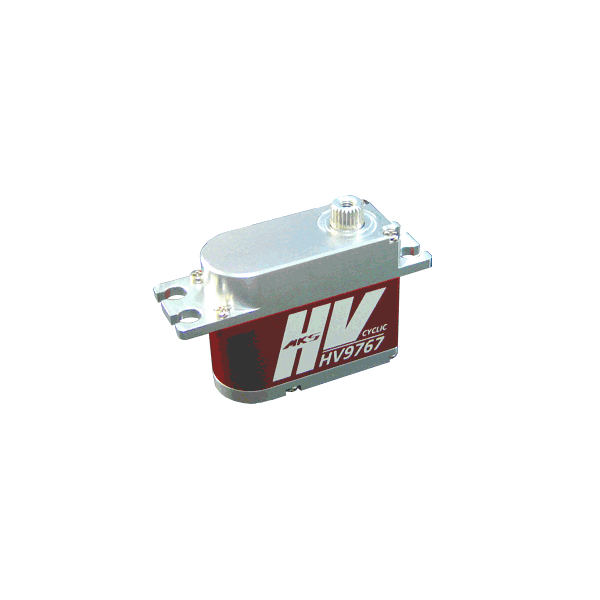

HV9767 Coreless High Torque Digital Servo
This is an MKS HV9767 Titanium Gear High Voltage Cyclic Servo with Aluminum Case. This servo is recommended for 500 class helicopter cyclic applications.
| Torque | |
| @6.0V | 94.4 oz-in (6.8 kg-cm) |
| @7.4V | 118.0 oz-in (8.5 kg-cm) |
| @8.2V | 130.5 oz-in (9.4 kg-cm) |
| Speed | |
| @6.0V | 0.090 s |
| @7.4V | 0.078 s |
| @8.4V | 0.070 s |
| Specs | |
| Weight | 38.55 g |
| Dimension | 35.5x15x28.5mm |
| Working Voltage | 5.5 ~ 8.4 V DC Volts (2S Lipo un-regulated) |
| Working Frequency | 1520μs / 333hz |
| Dead Band | 0.001 ms (Default) |
| Bearing | 2BB |
| Motor | Coreless Motor |
| Gear | Chrome-Titanium alloy gear |
| Electric Current Draw | 2.6A max.(8.2V)│2.4A max.(7.4V)│2.0A max (6.0V) |
| Wire Length | 29.5 cm |
