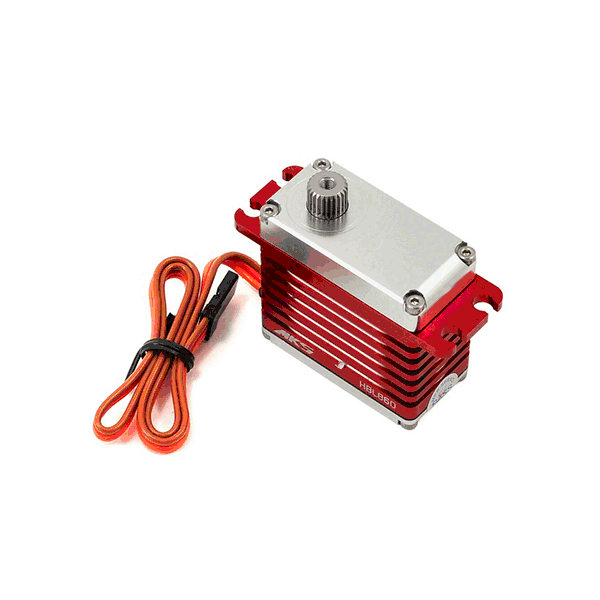

HBL860 Brushless Titanium Gear High Torque Digital Servo
$189.99
Product lead time varies.
Contact us for expected delivery date.
HBL860 Brushless Titanium Gear High Torque Digital Servo.
- Description
- Specifications
Description
HBL860 Brushless Titanium Gear High Torque Digital Servo
This is an MKS HBL860 Brushless Titanium Gear High Torque Digital Servo.
Torque | |
@6.0V | 344.4 oz-in (24.8 kg-cm) |
@7.4V | 395.7 oz-in (28.5 kg-cm) |
@8.2V | 437.4 oz-in (31.5 kg-cm) |
Speed | |
@6.0V | 0.15 s |
@7.4V | 0.12 s |
@8.2V | 0.11 s |
Specs | |
Weight | 73 g |
Dimension | 40x20x38.5mm |
Working Voltage | 4.8 ~ 8.4 V DC Volts (2S Lipo un-regulated) |
Working Frequency | 1520μs / 333hz |
Dead Band | 0.0008 ms (Default) |
Bearing | 12×8 mm Double bearings |
Motor | Brushless Motor |
Gear | Chrome-Titanium alloy gear |
Electric Current Draw | 6.2A max. (8.2V) / 5.8A max. (7.4V) / 4.7A max. (6.0V) |
Wire Length | 24 cm |
