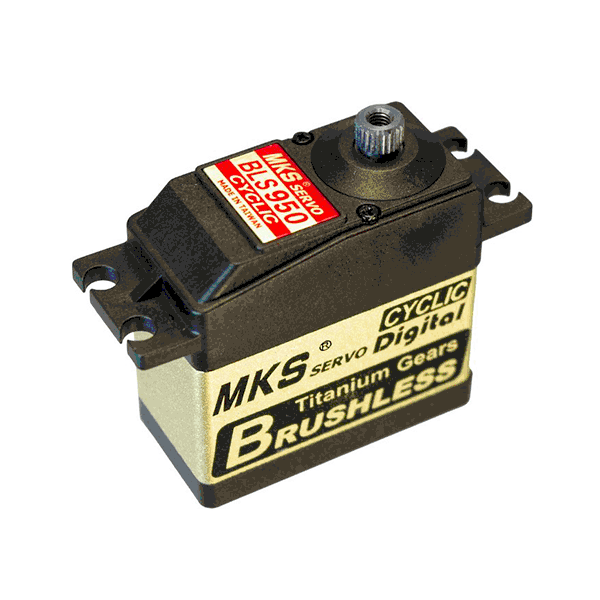

BLS950 Brushless Cyclic Servo
$109.99
BLS950 Brushless Cyclic Servo – Titanium Gear High Torque Digital Cyclic Servo with Aluminum Case.
- Description
- Specifications
Description
BLS950 Brushless Cyclic Servo
A BLS950 Brushless Titanium Gear High Torque Digital Cyclic Servo with Aluminum Case
| BLS950 Brushless Cyclic Servo Specifications | |
| Dead Band | 0.0008ms (default) |
| Control System | +Pulse width control |
| Working frequency | 1520us/333Hz |
| (RX) Required Pulse | 3.5~6.0 volt peak to peak square wave |
| Operating Voltage | 4.0~6.0 V DC |
| Operating Temperature Range | -10 to +60°C |
| Operating Speed (4.8V) | 0.14 sec/60° at no load |
| Operating Speed (6V) | 0.12 sec/60°at no load |
| Stall Torque (4.8V) | 127.8 oz/in (9.2 kg-cm) |
| Stall Torque (6V) | 159.7 oz/in (11.5 kg-cm) |
| 360° Modifiable | No |
| Motor Type | Brushless Motor |
| Potentiometer Drive | Indirect drive |
| Bearing Type | Dual ball bearings |
| Gear Type | Titanium Gears |
| Programmable | No |
| Connector Wire Length | 24.0cm (9.4″) |
| Dimensions | 40x20x40mm (1.57×0.79×1.50″) |
| Weight | 55.8g (1.96 oz) |
