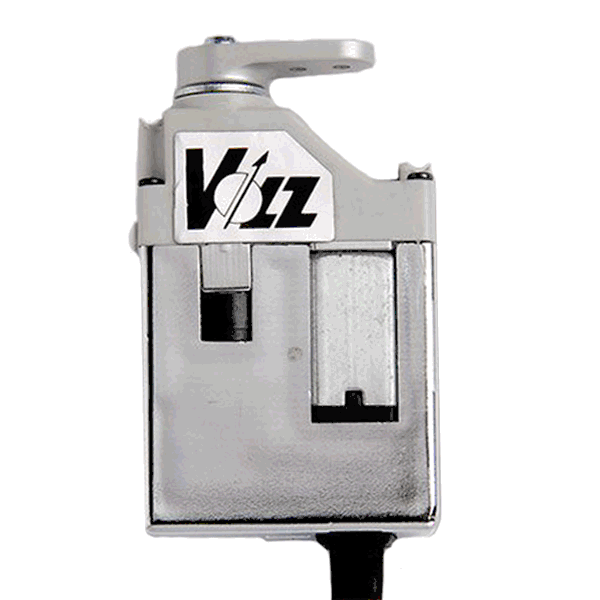

DA 10-05-42 Volz Servo
DA 10-05-42 Volz Servo is a 10mm, 5 volt, fully programmable, low profile actuator with an all steel gear train.
View cart
- Description
- Specifications
- Product Accessories
Description
DA 10-05-42 Volz Servo is a 10mm, 5 volt, fully programmable, low profile actuator with an all steel gear train. The Volz DA 10 actuator is provided with a snap in mounting frame for fast and easy installation.
10mm actuator for use in the tightest installation space, fully programmable using our programming tool (available for accessories), steel gear train. Snap-in frame for fast, easy assembly.
About Volz Servos
A servo from Volz excels due to the simplicity of its design while simultaneously maximizing positioning force, reliability and durability. Moreover, a variety of electric interfaces makes it possible, for instance, to monitor the operating condition of the servos by reading out the current consumption, the internal temperature and humidity, etc.
Every actuator compromises a DC motor, a gear train and control electronics governed by microprocessors with integrated position feedback. These are electromechanical servo units that precisely position a radial output drive.
Depending on the type of actuator, the maximum travel in the standard configuration varies between 90° and 170°. Versions with larger travel of up to 330° or “Multiturn” versions can be provided on request.
About Volz
Founded in 1983, Volz Servos began designing, manufacturing and marketing exclusively electro mechanical actuators/servos worldwide. Volz has developed a product range that meets most customer requirements concerning maximized torque, speed, efficiency, reliability, and durability at minimized volume/weight, component and development costs. Volz has a reputation for being experts in the market of compact, highly efficient actuators/servos.
Operating Data
| Supply Voltage (rated) | 5.0 V DC | |
| Supply Voltage Range | 4.8 …5.0 V DC | |
| Standby Current at rated voltage | Rated Current at rated voltage | 0.25 A |
| Peak Current at rated voltage | 0.74 A | |
| Rated Torque at rated voltage | 6 Ncm (8.4 ozf-in) | |
| Peak Torque at rated voltage | 30 Ncm (42 ozf-in) | |
| No Load Speed at rated voltage | 380°/s | |
| Rated Speed at rated torque | 325°/s | |
| Default Travel Angle | ±45° = 90° total travel | |
| Max. Travel Angle | ±65° = 130° total travel | |
| Backlash (mechanical) | < 0.9° | |
| Position Error under Temperature | < ±1.0° | |
| Operating Temperature | -30°C … +70°C (-22°F…+158°F) | |
| Storage Temperature | -35°C…+80°C (-31°F…+176°F) |
Command Signal
| Signal Voltage Levels | TTL-Level HIGH: min. 2.2V; max 5.0V |
| Signal Voltage Levels | TTL-Level LOW: min 0.0V; max 0.8V |
| Frame Rate | 7…20 ms |
| Valid Pulse Lengths | 0.8…2.2 ms |
| Pulse Length for Position Left/Center/Right | 1.0/1.5/2.0 ms |
| Resolution | <1us |
Material & Protective Features
| Case | POM | Chrome plated bottom case part |
| Splash Water Resistance | not available | |
| Salt Water Resistance | not available | |
| EMI / RFI Shielding | not available | |
| Motor | Brushed 4.5 V DC Motor | |
| Gear Set | Hardened Steel | |
| Position Sensor | Precision Potentiometer | |
| Position Feedback | not available |
Dimensions
| Case Dimensions | 38.0 mm x 26.5 mm x 10.0mm (1.496 in x 1.043 in x 0.394 in) |
| Weight | 19g (0.67 oz) ±10% |
Electrical Connection
| Standard Connector | ||
| Manufacturer | JST | |
| Type | ZMR-03 | |
| Mating | ZHR-3 | |
| Pin Assignment | ||
| Red | +V DC | Supply Voltage |
| Black | GND | Supply Ground / Signal Ground |
| White | SIG | Command Signal |
Product Accessories
| ITEM | ITEM NO. |
| Aluminum Servo Arm – short | 1521.21 |
| Aluminum Servo Arm – long | 1521.22 |
| Grommets (3 pcs.) | 1521.25 |
| Extension Lead – 50cm – 3 lead – 4g | 110.050 |
| Extension Lead – 80cm – 3 lead – 6g | 110.080 |
| Extension Lead – 100cm – 3 lead – 8g | 110.100 |
| Extension Lead – 150cm – 3 lead – 12g | 110.150 |
| Programming Tool | 985.1 |
