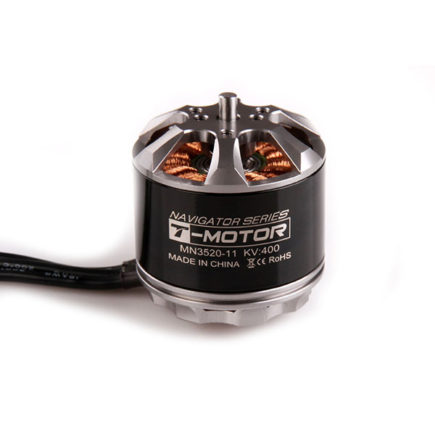

T-Motor MN3520 Navigator Series
$109.90
Provides reliable and trustworthy performance. Features a self-cooling design for better performance.
- Description
- Specifications
Description
T-Motor MN3520 Navigator Series Motor is workable for both fixed wings and multicopters; it provides excellent performance and features a self-cooling design for better performance.
MN3520 Features
- Precision workmanship
- Smooth running
- Well-balanced
- EZO Bearings
The MN3520 comes with a higher level EZO bearing which helps improve the life of he motor. EZO Bearings to ensure it is smooth running and well balanced right out of the box. The design also cuts down on vibrations that negatively affect aerial video and autopilot inertial sensors. Estimated flight time on bearings is 60-80 hours. Recommendation is to change bearings after 60 hours of flight.
About Tiger Motor (T-Motor)
Tiger Motor specializes in manufacturing motors, esc, propellers and other related UAV products. Tiger Motor aims to provide the safest propulsion system for commercial and professional applications. Tiger Motor has a strong R & D team who have a passion for innovation.
MN3520 400KV Specifications
KV: 400
Configuration: 12N14P
Stator Diameter: 35mm
Stator Length: 15mm
Shaft Diameter: 4mm
Motor Dimensions (Dia x Len): 42.5 x 34.5mm
Weight (g): 183g
Idle current (10)@10v(A):0.3A
No. of Cells (Lipo): 4-8S
Max Continuous current (A) 180S: 30A
Max Continuous power (W) 180S: 900W
Max. efficiency current: (10-18A)>80%
Internal resistance: 116m
Cable: 600mm 3.5mm connector
