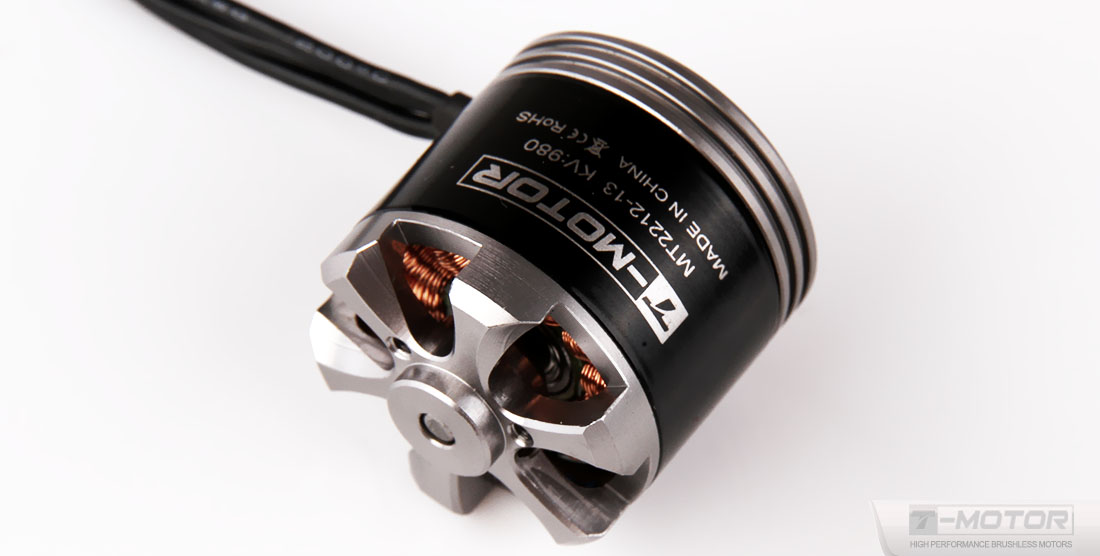

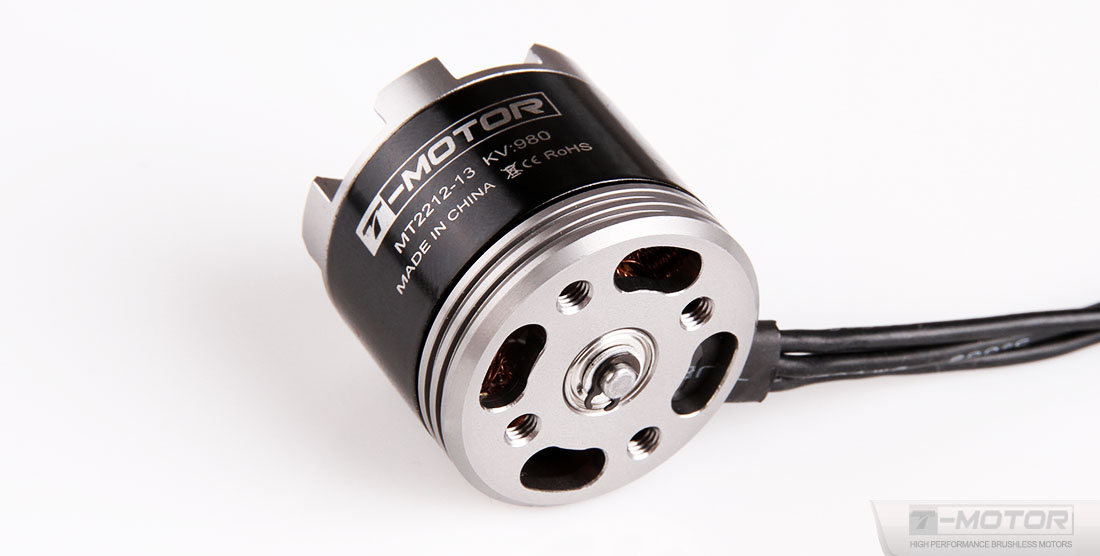

MT2212 Motor
$44.90
MT2212 by Tiger Motors is a high-performance, brushless motor designed for use on multi-rotor aircraft such as quadcopters and hexacopters.
On average, T-motor product ships 3-5 days from purchase.
Contact us for rush delivery requests.
- Description
- Specifications
Description
Is a high-performance, brushless motor designed for use on multi-rotor aircraft such as quadcopters and hexacopters. It is designed to operate smoothly and be well balanced directly out of the box. The MT2212 is part of Tiger Motor MT Series – Professional line of motors and is available in 750KV, 980KV, 1100KV.
MT2212 Features
- Precision workmanship
- Smooth running
- Well-balanced
- EZO Bearings
MT2212 is outfitted with EZO Bearings to ensure it is smooth running and well balanced right out of the box. The design also cuts down on vibrations that negatively affect aerial video and autopilot inertial sensors. Motor has epoxy-coated Kawasaki stator plates for low eddy current loss, oxygen-free copper windings for low resistance, and N45UH high-temperature Neodymium magnets.
This highly efficient motor can maintain good performance up to 180° C. Backed by a two-year manufacturer’s warranty on materials and workmanship.
MT2212 Recommended for use with 3 to 4S LiPo and 9×3 to 11×3.7 props.
About Tiger Motors (T-Motor)
Tiger Motors specializes in manufacturing motors, esc, propellers and other related UAV products. Tiger Motors aims to provide the safest propulsion system for commercial and professional applications. Tiger Motors has a strong R & D team who have a passion for innovation.
MT2212 980KV Specifications
| MT2208 980KV | |
| KV | 980 |
| Configuration | 12N14P |
| Stator Diameter | 22mm |
| Stator Length | 12mm |
| Shaft Diameter | 3.17mm |
| Motor Dimensions (Dia x Len) | 27.5 x 28mm |
| Weight (g) | 55g |
| Idle current (10)@10v(A) | 0.5A |
| No. of Cells (Lipo) | 3-4S |
| Max Continuous current (A) 180S | 18A |
| Max Continuous power (W) 180S | 230W |
| Max. efficiency current | (3-10A)>83% |
| Internal resistance | 126m |
| Cable | 400mm 3.5mm connector |
