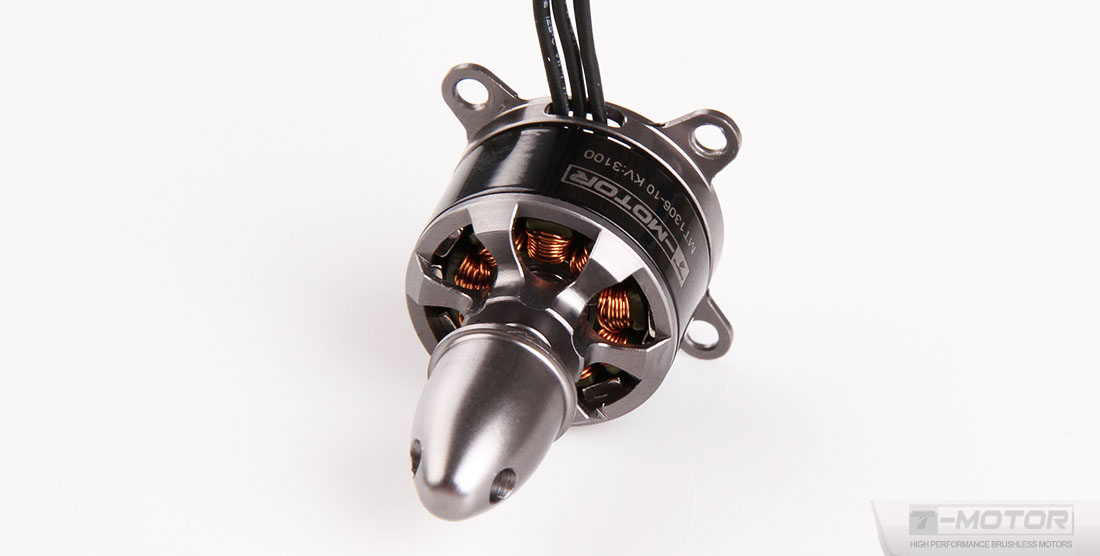

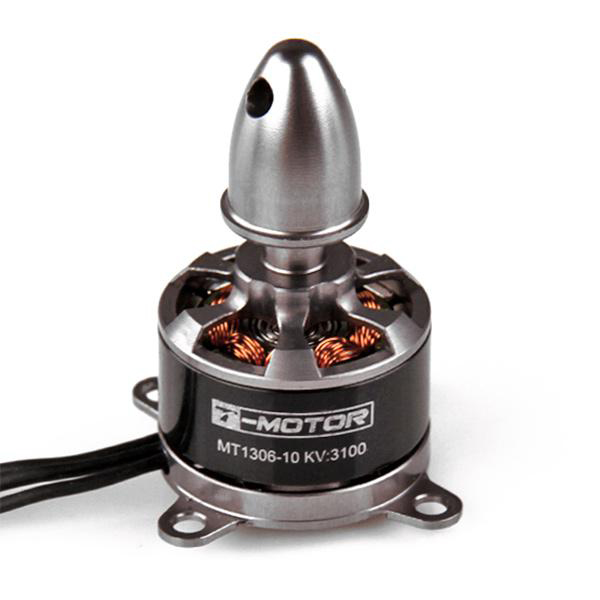

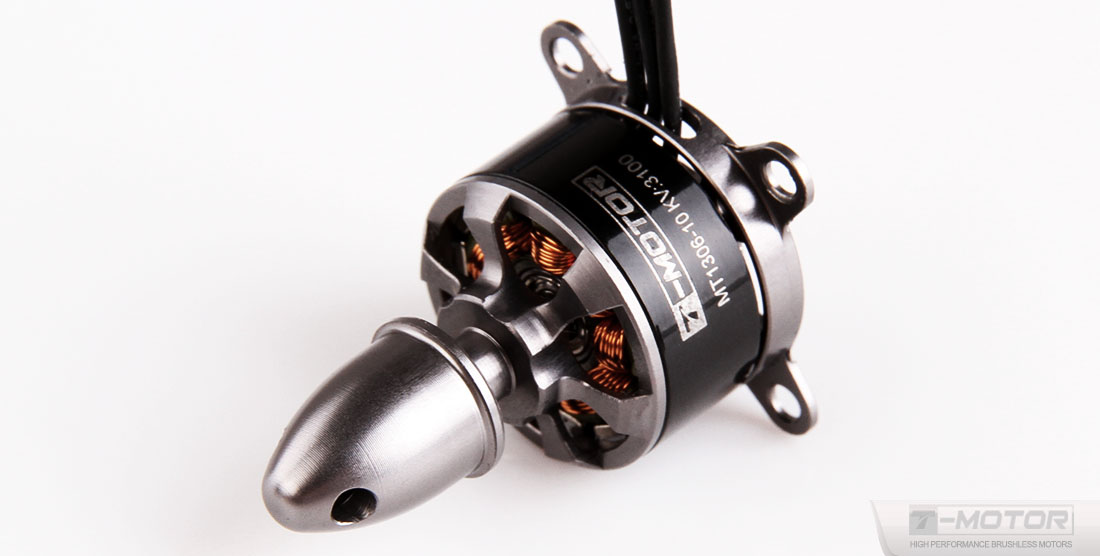

MT1306 Motor

$41.90

MT1306 by Tiger Motors is a high-performance, brushless motor designed for use on multi-rotor vehicles. Prop adapter use with unibody design, it is the first choice of miniature multiple spindle aircraft.

On average, T-motor product ships 3-5 days from purchase.
Contact us for rush delivery requests.

View cart

Description

MT1306 by Tiger Motors is a high-performance, brushless motor designed for use on multi-rotor vehicles as well as small winged aircraft. Prop adapter use with unibody design, it is the first choice of miniature multiple spindle aircraft.

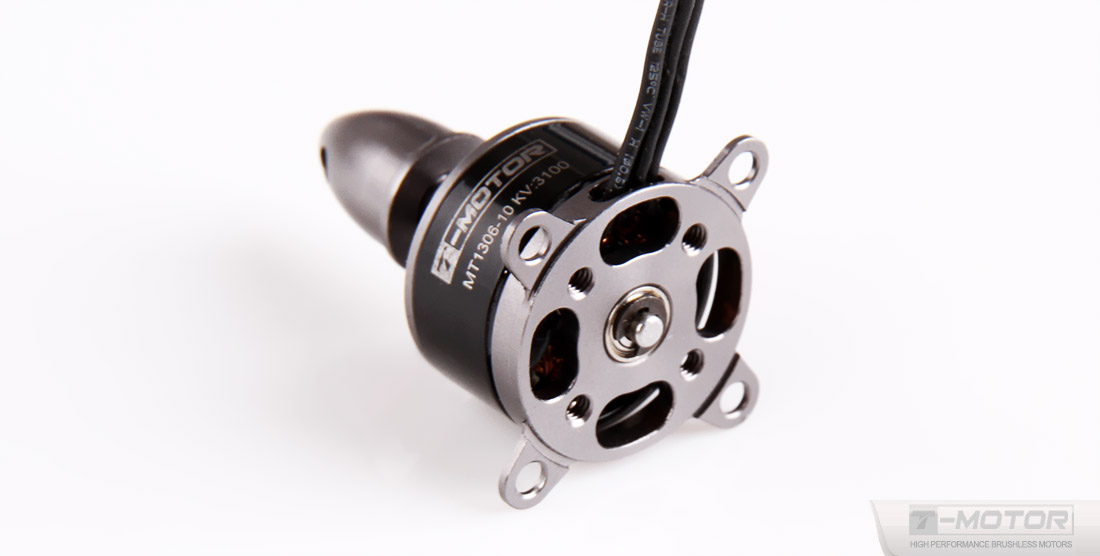

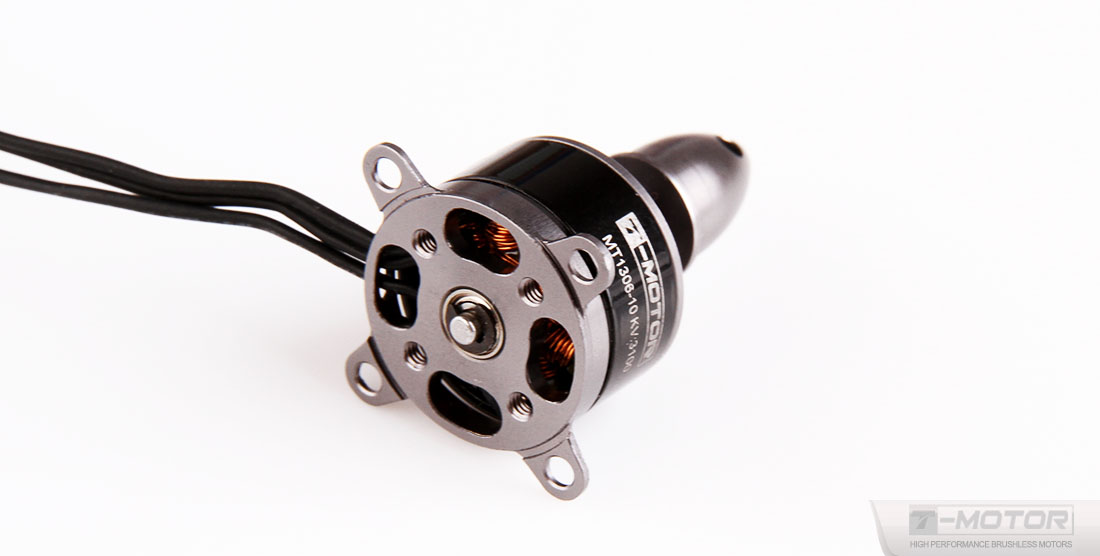

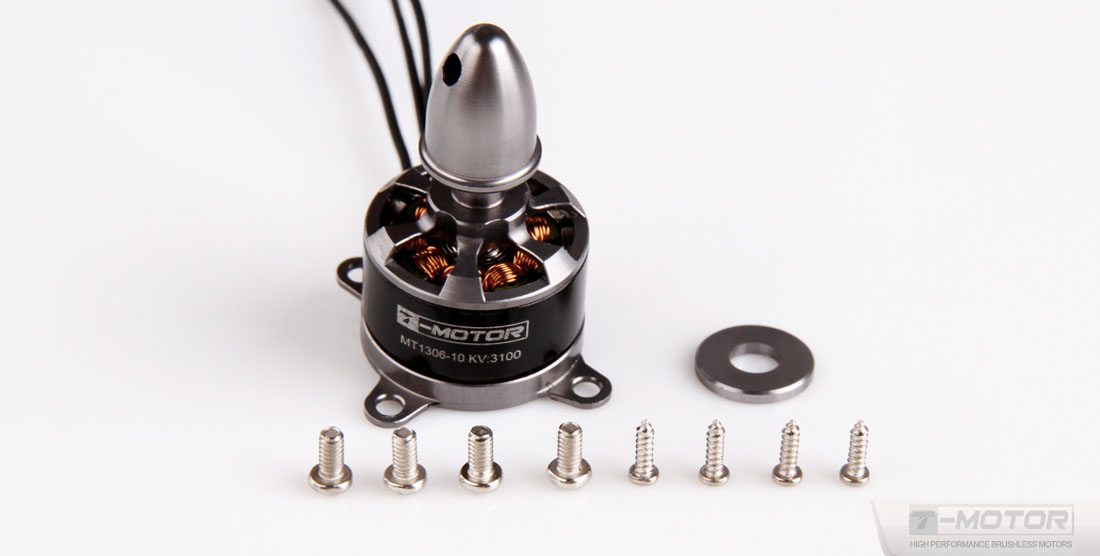

The MT1306 motor can be mounted directly through the motor mounting bracket using a 12 x 12 diagonal hole; this mounting position is easy to install and reduces weight. For fixed-wing installation, user can use pliers break 22 x 22 diagonal holes along the groove marks, angle holes with aircraft fixed plate.

mt1306_pic

 MT1306 Features

  • Precision workmanship
  • Smooth running
  • Well-balanced
  • EZO Bearings

MT1306 is designed to cut down on vibrations that negatively affect aerial video and autopilot inertial sensors. Motor has epoxy-coated Kawasaki stator plates for low eddy current loss, oxygen-free copper windings for low resistance, and N45UH high-temperature Neodymium magnets. This highly efficient motor can maintain good performance up to 180° C. Backed by a two-year manufacturer’s warranty on materials and workmanship.

MT1306 Recommended for use with 2S LiPo and 6×2 to 7×2.4 props.

mt1306_drawing

About Tiger Motors (T-Motor)

Tiger Motors specializes in manufacturing motors, esc, propellers and other related UAV products. Tiger Motors aims to provide the safest propulsion system for commercial and professional applications. Tiger Motors has a strong R & D team who have a passion for innovation.

MT1306
KV 3100
Configuration 9N12P
Stator Diameter 13mm
Stator Length 6mm
Shaft Diameter 2mm
Motor Dimensions (Dia x Len) 17.7 x 15mm
Weight (g) 11.2g
Idle current (10)@10v(A) 0.2A
No. of Cells (Lipo) 1-2S
Max Continuous current (A) 180S 6A
Max Continuous power (W) 180S 44W
Max. efficiency current (1.5-4A)>71%
Internal resistance 62m
Cable 85mm no connector
