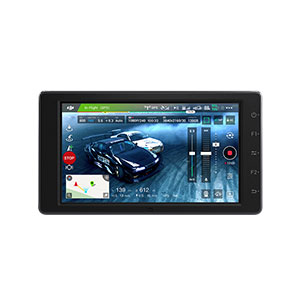

CrystalSky Monitor 5.5″ High Brightness by DJI

CrystalSky Monitor 5.5″ High Brightness by DJI

Created for outdoor aerial imaging, the CrystalSky monitor features an ultra-bright screen that is clearly visible in sunlight. It makes viewing your shots easier in sunlight. It is designed from the ground up to work seamlessly with the DJI GO/DJI GO 4 app. This seamless integrations allows end users to have full control over the drone and the camera.



Included in the box:

• CrystalSky Monitor ×1
• Intelligent Battery ×1
• Intelligent Battery Charging Hub ×1

CrystalSky Remote Controller Mounting Bracket is sold separately*.

*A Remote Controller Mounting Bracket is required when attaching a CrystalSky monitor to Inspire series, Phantom 4 series, Phantom 3 Professional, Phantom 3 Advanced, or Matrice series remote controllers.



ULTRA-BRIGHT

Typical mobile devices have a brightness of 500 cd/m², the CrystalSky monitor has a maximum brightness of 2000 cd/m², almost four times as bright. This level of brightness ensures on-screen details are clear and sharp, and colors are vibrant, giving the quality needed to fine tune image composition. A dedicated Sunlight eadability Enhancement mode is especially designed for processing the image in real-time to ensure more comfortable viewing under bright light.

* 5.5” / 7.85” 1000 cd/m2 7.85” Ultra Bright 2000 cd/m2Resolution: 2048×1536 (7.85’’) / 1920×1080 (5.5’’)

Real-time Video Decoding Latency

SMOOTHER VIDEO DISPLAY

Video decoding on other smart devices is less than ideal due to limitations in software access. The CrystalSky monitor uses optimized video decoding to decode video in real-time. When used to view photos or videos transmitted by the camera, problems can occur including video jitter, long latency and more. With optimized decoders on CrystalSky monitors, you can rest assure with smooth, real-time video with minimal latency.



CUSTOMIZED SYSTEM AND DJI GO

CrystalSky monitors use a newly designed system that removes unnecessary Android apps and services and is resistant to viruses and junk software. With the removal of these unnecessary components, CrystalSky monitors offer optimum performance at all times. Its embedded DJI GO app provides full access to all DJI GO features including aircraft parameter adjustment, camera control, footage management, and playback. Using offline maps, maps can be kept available even if going out of Wi-Fi reach.*Supports DJI GO, DJI GO 4, and DJI Pilot.



POWER SUPPLY

A two cell 4920 mAh secondary external battery gives the CrystalSky monitor a longer operating time than comparable mobile devices. It supports quick charge, and controls its discharge rate well even in low temperatures. Used with the 7.85″ and 5.5″ screens, it can achieve a maximum operation time of 4-5 hours and 5-6 hours respectively.





DUAL SD CARD SLOTS

DJI CrystalSky monitors are equipped with dual Micro SD Card slots. This feature allows storage to be extended and allows recorded footage to be played back direcly on the monitor. Dual Micro SD Card slots can also be used for footage backup for redundancy. Using editors built in DJI GO, high-quality edits can be made quickly and instantly shared to social media. The CrystalSky monitor supports H.264 and H.265 video decoding, allowing it to play back these files at 30 fps and 60 fps respectively. These videos can also be output through its HDMI port.

PORTS AND NETWORK

CrystalSky monitor’s have an integrated HDMI port that allows up to 4K video to be output to FPV goggles and other display devices. Built-in dual band Wi-Fi means it can connect to Wi-Fi networks and Wi-Fi hotspots from mobile devices, and it is also compatible with 4G dongles and USB storage through its USB-A port. When connected to the internet, the CrystalSky monitor gets easy access to system upgrades, live streaming, photo or video sharing, data synchronization and more. File sizes are optimized as much as possible to minimize mobile data demands. Onboard Micro USB and USB-C ports make it convenient to connect the CrystalSky monitor with a remote controller or other devices.

EXTREME TEMPERATURE OPTIMIZED

Most smart devices on the market can only operate in common temperature ranges. The CrystalSky monitor’s external battery has been designed for more extreme temperatures. It is able to operate in as low as -4°F (-20°C) and, with its internal cooling system, functions normally in temperatures as high as 104°F (40°C).



DJI AERIAL SYSTEM COMPATIBILITY

The CrystalSky monitor can quickly connect to the Inspire series, Phantom 4 series, Phantom 3 series (Phantom 3 Professional, Phantom 3 Advanced), Matrice series, and Osmo series (except the Osmo Mobile) over Wi-Fi or via a remote controllerUSB port, depending on your specific product.* Also, CrystalSky easily attaches to the Cendence remote controller without an additional mounting bracket.
