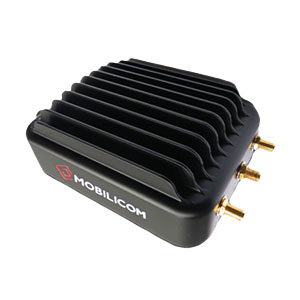

MCU-30 – Miniature Unit – Extended Ruggedized

The multi-functional MCU-30 unit is a 4G combined with Mobile MESH, IP communications unit that delivers ad-hoc direct wireless mobile communication, including: HD Video, data and VoIP without the need for any infrastructure.

View cart

Description

Mobilicom’s multi-functional MCU-30 unit is a 4G combined with Mobile MESH, IP communications unit that delivers ad-hoc direct wireless mobile communication. This includes: HD Video, data and VoIP without the need for any infrastructure.

This low power consumption, lightweight, battery operated unit delivers the highest form-to-performance ratio and is ideal for hand carry missions and robotics on the move, whether aerial, ground or sea.

Product Highlights

  • 4G with Mobile MESH
  • Fully synchronized system
  • Outdoor & indoor operation
  • Hand carried size & low power consumption
  • Highest form-to-performance ratio
  • Designed to withstand shock, vibration, dust, humidity, fog and extreme temperature range
  • Battery operated
  • Wide frequency range: 75MHz-6GHz
  • Software Defined Radio (SDR)
  • MIMO Advanced Antenna Processing
  • Triple Layer Security
  • Water proof (IP67) and extreme temperature range

The multi-functional MCU-30 extended ruggedized unit offers a wide frequency range from 75 MHz to 5.9 GHz.

The extended ruggedized MCU-30 unit provides additional protection to withstand shocks, vibration dust, humidity, extreme temperature. It is also waterproof, IP67.

With field-proven high performance in challenging Non-Line of Site (N-LOS) surrounding, the MCU-30 exceeds standard performance including multipath environments and N-LOS such as forests and urban environments.

MCU-30 Supports

The MCU-30 extended ruggedized unit adapts and supports multiple network topologies on-the-move:

  • Mobile Point-to-Point
  • Mobile Point-to-Multipoint
  • Mobile Multipoint-to-Multipoint
  • Mobile MESH
  • Extended MESH
  • Collaborative MESH

As a multi-functional unit, the MCU-30 operates as a transceiver, relay, and gateway to other units in the network and will “self-manage” and “self-heal” on-the-move.

Each unit transceives all data, thus eliminating the need for base stations, repeaters, and transmitters. Consequently, it can become a backup unit for all other units in the network, creating a robust and redundant communications network with no single-point-of-failure.

The technology

By leveraging 4G technology combined with Mobile MESH topology and MIMO antennas, each antenna is an independent unit fully transceiving HD video, data and VoIP.

With a smart antenna consisting of transmit Cyclic Delayed Diversity (CDD) and Maximal Ratio Combining (MRC) receiving diversity, Mobilicom provides highest communication quality, larger distance range.

Powered by Mobilicom’s Software Denied Radio (SDR) the MUC-30 unit is adaptable to any modification or configuration of the wireless link parameters to best fit the ever changing environment conditions.

About Mobilicom

As a global mission-critical communications solution provider, Mobilicom develops and delivers Mobile Private Network technology and solutions for wireless mobile networks, without the need for any infrastructure. By leveraging 4G technology combined with mobile MESH network topology, Mobilicom assures optimal secured wireless communications. Mobilicom caters to every deployment and project scope — from small to large scale — with the highest flexibility, reliability and mobility in the market.

Radio and Modem

Range: Up to 15km (omni); 20-30km (directional); Longer ranges available.

Frequency: 700-950 MHz; 902-928 MHz (ISM); 2.4 GHz (ISM); 2.3-2.7 GHz; 5.8 GHz (ISM); 4.9-5.9 GHz. Multi Band Radio (MBR) Available. Other frequencies available ranging from 75 MHz – 6 GHz

Antenna Various options: Omni 0-8dBi
Hemisphere, Sectorial, Directional, Tracking antenna also available.

Antennas Connectors: 2XSMA female

Output Power (Average per channel): Up to 1W

Tx Power Control: 50dB

Rx Dynamic Range: 70dB

Sensitivity: Max -101dBm

Radio Access Method: OFDM – TDMA

Duplexing: TDD

Configuration: MIMO 2X2; Tx & Rx Diversity

Channel BW: 2.5 MHz – 10 MHz; Up to 20 MHz available upon request

FFT Supported: 512 (32 – 2048 upon request)

FEC method: CTC

Modulations: QPSK / 16QAM

Throughput: 1.6 – 10 mbps; Up to 20 mbps upon request

Synchronization: Synchronized w/o GPS. GPS & 1PPS also available.

Encryption: AES 128; AES 256 and Custom Export Control



Environmental

Temperature Range Extended Ruggedized:
Operating: -20 to 60 C
Storage: -50 to 85C

Humidity: 5 to 95% non-condensing

Sealing: Designed for IP67, dust, water proof, immersion in water up to 1 meter

Environmental Casing: Shock, vibration, salt



Interfaces

Data: Ethernet 10/100Mbps

Full Ethernet Protocol Transparency: IP, TCP, UDP, RTP, HTTP; Broadcast, Multicast, Unicast, Ethernet, VLAN, VPN

Optional Interfaces: RS232 / 485 / 422. GPIO, 1pps



Physical

Dimensions: 12 x 9 x 6 cm; 4.7 x 3.5 x 2.3 in

Weight: 550 grams; 19 oz.



Power

DC Voltage: 7-26V DC
Power consumption: up to 12 W; 10W average
