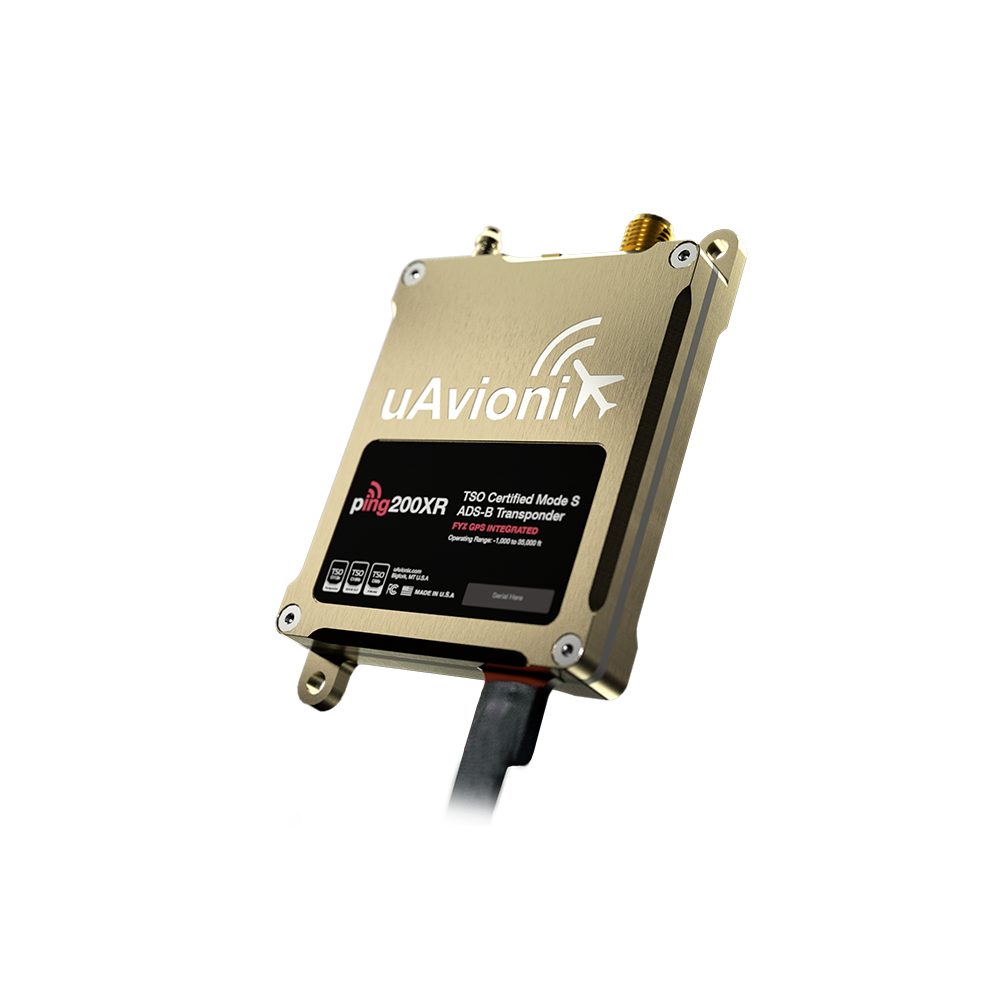

ping200XR ADS-B Transponder

ping200Sr by uAvionix is a compact 80 gram, 250W FCC approved remote mount Mode S transponder with ADS-B Out.

Designed for UAS and Stratospheric baloon operations, ping200SR is ideal for operators and integrators looking to add a transponder to existing systems. ping200SR is a complete system designed to meet the conspicuity requirements for operating UAS in controlled airspace.

This system includes an integrated, high integrity WAAS GPS sensor derived from uAvionix TSO’d FYX technology, and a precision, temperature controlled, barometric pressure sensor with accuracy beyond 80,000ft.

The all-in-one design is ideal for rapid deployment on almost any UAS including popular OEM platforms such as the DJI Matrice 100 and Matrice 600 series.

The GPS and transponder antenna are both remotely mountable for convenience.

•  Mode S transponder
• ADS-B 1090ES DF17 transmitter
• Integrated WAAS GPS
• Integrated static pressure sensor
• Meets the performance requirements of TSOC166b
• Class B1S and TSO-C199 Class A and B
• Meets the ADS-B Out equipment performance requirements of 14 CFR 91.227
• Meets the minimum performance requirements of the following RTCA specifications:
  • DO-181E Level 2e, Class 1
  • DO-260B Class B1S
• GPS/SBAS augmentation system. RAIM layer for Fault exclusion
• Temperature controlled static pressure sensor accurate to 80,000ft
• Battery backed GPS for fast TTFF
• DO-160G environmental Cat B2
• GDL90 compatible CONTROL serial input
• MavLink compatible CONTROL serial input
• Compatible with popular autopilots
• GDL90 ownship and altitude packets
• SMA 1030/1090MHz Antenna Connector
• Integrated GPS antenna
• US Patents Pending

ping200SR Product Brief

Ping200Sr included in the box:

• Ping200Sr
• Power lead and communication harness
• Antenna cable
• Transponder antenna
• Remote mount GPS antenna with MCX connector
• Wi-Fi Programmer
• Quick Start Guide
• Installation Manual
• ICD
