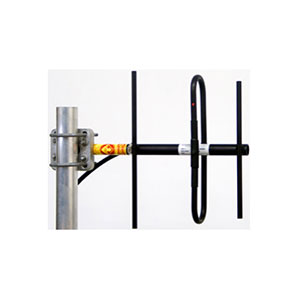

PRO375 Yagi 375-403 MHz 8.6 dBi

Description

PRO375 Yagi 375-403 MHz 8.6 dBi is engineered to meet or exceed the requirements of a broadband, high gain, Professional Grade VHF Yagi antenna.

The PRO375-8 provides 8 dBi gain and operates effectively across the frequency band of 375-403 MHz with a VSWR of 1.5:1 or less.



Construction

All Wavelink Professional Grade antennas are manufactured using high strength 6061-T6 aluminum. The dipole and directive elements are fully welded to the boom completely eliminating misalignment problems. The antenna is also electrically one piece, effectively eliminating intermod issues and future performance degradation.

The dipole design incorporates an integral feed cable available in lengths up to 50 feet. The extended feed line option offers many benefits:

1. Dramatically reduces install time, by up to 2 hours per site

2. Completely eliminates the connector at the antenna

3. Improves signal strength ½ to ¾ of a dB

4. Eliminates connector weatherproofing concerns

5. Significantly reduces long term cost of ownership

The PRO375-8 is anodized to protect against environmental degradation even in the most severe environments.



About WaveLink Antennas

WaveLink Antenna Systems started in 2009. With over 100 years of collective industry experience, WaveLink has the expertise to create new and innovative products to meet the demand of an ever-changing wireless communications industry.

Operating Frequency (VSWR ≤ 1.5) MHz	375-403
Nominal Gain (dBi)	8.6
Horizontal Beamwidth (Deg-3dB)	104
Vertical Beamwidth (Deg-3dB)	62
Front To Back Ratio (dB)	15
Power Rating (W)	250
Length (inches)	18
Width (inches)	18.8
Antenna Weight (lbs.)	2
Cross Sectional Area (Max. Ft²)	0.25
Lateral Thrust at 100mph (lbs.)	5.85
Rated Wind Velocity (mph)	125
Rated Wind Velocity with 1/2” radical (mph)	120
