Ultra Flex Omni Antenna, 2.1-2.5 GHz, 2.15 dBi
$164.00
Innovative environmentally-sealed spring base gives antenna flexibility to deflect/bend with impact.
- Description
Description

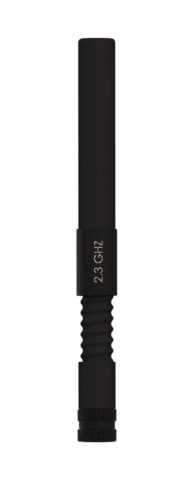

Ultra Flex Omni Antenna, 2.1-2.5 GHz, 2.15 dBi by Southwest Antennas.
This rugged, small form factor dipole antenna features an innovative environmentally-sealed spring base, giving the antenna flexibility to deflect/bend with impacts and return to its original vertical position. The integrated spring design minimizes stress placed on the antenna and radio connection, and can help prevent damage to both in the event of an impact.
The spring is fully sealed to prevent rain, dust, and other debris from impacting antenna performance, which is also fully submersible once securely mated to a radio. A G10 fiberglass radome holds up to abuse in the field, and a low-glare black finish helps the antenna blend into surroundings and not draw attention.
Rugged black G10 fiberglass radome with an overall height of 6.08 inches.
TNC(m) Non-Rotating RF Connector.
Features
- Broad Band Coverage
- 2.1 – 2.5 GHz
- 50W Power Handling
- 2.15 dBi Omni Radiation Pattern
- Rugged Construction
- Low Glare Black Fiberglass Radome
- Black Chrome TNC(m) Non-Rotating RF Connector
- Ultra-Flexible Spring Base
- Sealed Spring / Waterproof Design
Specifications
| Parameter | Value | Units | Tolerance |
|---|---|---|---|
| Antenna Pattern | Omni Antenna | ||
| Frequency Band | S | ||
| Impedance | 50 | Ohms | |
| Minimum Frequency | 2.1 / 2,100 | GHz / MHz | |
| Maximum Frequency | 2.5 / 2,500 | GHz / MHz | |
| Frequency Bandwidth | 0.4 / 400 | GHz / MHz | |
| Maximum VSWR | 2:1 | Ratio | |
| Maximum Gain | 2.15 | dBi | |
| Polarization | Vertical | ||
| Horizontal (AZ) Beamwidth | 360 | Degrees | |
| Vertical (EL) Beamwidth | 77 | Degrees | |
| Ground Plane Required | No | ||
| Radome Material | G10 Fiberglass | ||
| Color | Black | ||
| Spring or Gooseneck | Spring | ||
| Spring Bend | ±90 | Degrees | Maximum |
| Maximum Wind Velocity | 100 / 161 | mph / kph | |
| RF Connector Type | TNC(m) Non-Rotating | ||
| RF Connector Features | Black Chrome | ||
| Operating Temperature Range | -40 to +85 | C | |
| Product Height | 6.080 / 154.432 | inches / mm | ±.13″ |
| Product Diameter | 0.562 / 14.275 | inches / mm | +.020″ / -.000″ |
| Product Weight | 2.00 / 56.70 | oz / grams | |
