PRO902-5 Omni 902-928MHz 5dBi
$502.14
PRO902-5 Omni 902-928MHz 5dBi antenna is engineered to meet or exceed the requirements for a rugged, high gain outdoor omni-directional antenna.
Lead Time: 10 days.
- Description
- Specifications
Description

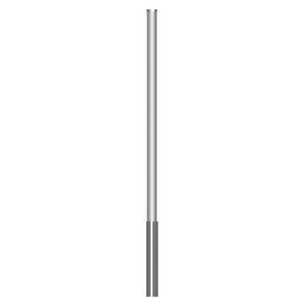

PRO902-5 Omni 902-928MHz 5dBi is engineered to meet or exceed the requirements for a rugged, high gain outdoor omni antenna. The antenna provides 5 dBi gain and operates effectively across the operating range of 902-928 MHz with a VSWR of 1.5:1 or less.
Available in 8 dBi and 11 dBi.
Construction
PRO902-5 Omni Antenna is constructed using a UV-resistant fiberglass radome, coupled to a machined, heavy duty aluminum base. The 6061-T6 aluminum base is anodized to protect against environmental degradation.
It is equipped with integrated N-Female connector. The elongated N-Female connector is recessed within the base to minimize exposure, while the large inside diameter allows easy access for the connection.
PRO902-5 Omni Antenna is manufactured in the USA by WaveLink for their Professional Grade series. The Omni Antenna is engineered to meet or exceed the requirements for a rugged, high gain outdoor omni-directional antenna.
Includes C1002 mounting bracket.
About WaveLink Antennas
WaveLink Antenna Systems started in 2009. With over 100 years of collective industry experience, WaveLink has the expertise to create new and innovative products to meet the demand of an ever-changing wireless communications industry.
| Specifications | |
| Operating Frequency (VSWR ≤ 1.5) | 902-928 |
| Nominal Gain (dBi) | 5 |
| Horizontal Beamwidth (Deg-3dB) | 360 |
| Vertical Beamwidth (Deg-3dB) | 28 |
| Power Rating (W) | 200 |
| Length (inches) | 52 |
| Width (inches) | 2.25 |
| Antenna Weight (lbs.) | 5 |
| Cross Sectional Area (Max. Ft²) | 0.83 |
| Lateral Thrust at 100mph (lbs.) | 20.75 |
| Rated Wind Velocity (mph) | 150 |
| Rated Wind Velocity with 1/2” radical (mph) | 125 |
