1085-082

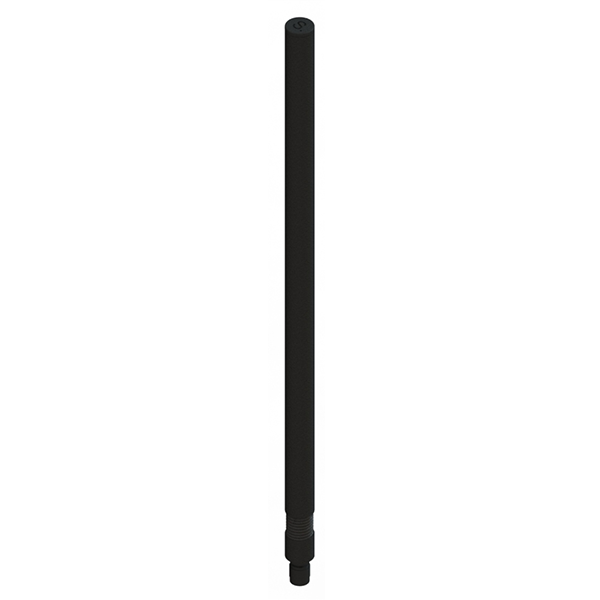

Omni 4 Section Collinear Antenna 2.2-2.5GHz, 6dBi

$275.00

4 week product lead time.



Omni 4 Section Collinear Antenna 2.2-2.5GHz, 6dBi by Southwest Antenna is a high performance vertical Omni antenna. An Omni antenna radiates 360° in the horizontal plane. Peak gain is usually on the horizon.

SKU: 1085-082 Categories: , Tags: , , , , , , , ,
View cart

Description

Omni 4 Section Collinear Antenna 2.2-2.5GHz, 6dBi by Southwest Antennas is a high performance vertical Omni antenna. It is a broadband Omni 4 section collinear antenna that operates at 2.2-2.5GHz, and provides 6dBi of gain. An Omni antenna radiates 360° in the horizontal plane. Peak gain is usually on the horizon. All collinear Omni antennas are centre-fed, making them ground plane independent and providing stable radiation patterns across the band.



Omni 4 Section Collinear Antenna 2.2-2.5GHz, 6dBi features:

  • Broad Band Coverage
  • 4 Section Collinear
  • 2.2-2.5GHz
  • Rugged Constructions Low Glare Black
  • Heavy Duty Spring Base
  • Black Chrome RF Connector



Types of Mounts

Four types of mounts are used to support almost all SWA Omni Antennas

  • Standard Connector Mount: this light yet sturdy antenna is mounted directly by several connector options, allowing for a variety of applications. Most connectors are type N or TNC, male or female. SNA is also available.
  • Flange Mount: A flanged mounting base makes an antenna ideal for many ground-based and airborne applications.
  • Microwave Mag-Mounts: A strong moveable magnetic base for various vehicle uses.
  • STC Mount: A mount designed specifically for airborne applications.



About Southwest Antennas

Southwest Antennas designs and manufactures high performance, broadband antennas and antenna accessories designed to be the critical link in today’s communication solutions. We offer over 500 antenna products and provide a full range of technical services from initial product concept to final product manufacture, covering markets including broadcast video, military, law enforcement, homeland security, surveillance, aerospace, asset tracking, oil and gas, UAV / drones, cellular communication, and more.

Founded in 2005 and headquarted in San Diego, California, the technical staff at SWA have over 75 years of combined experience designing RF and microwave antennas of all types, with employees specializing in electrical, mechanical, RF, and software engineering.

Parameter Value Units Description
Impedance 50 Ohms
Minimum Frequency 2.2 GHz
Maximum Frequency 2.5 GHz
Maximum VSWR <2:1 ratio Between Min and Max Freq
Gain 6.0 dBi Max Gain
Max Input Pwr 50 Watts Watts(Max)
Polarization Vertical
Horizontal Beamwidth 360 Degrees
Vertical Beamwidth 30 Degrees
Connector Type TNC(m)
Length 18.50 Inches ± .13
Diameter .812 Inches  +.020 / -.000
Weight 4.4 oz.
Maximum Wind Velocity 100 Km/Hr
