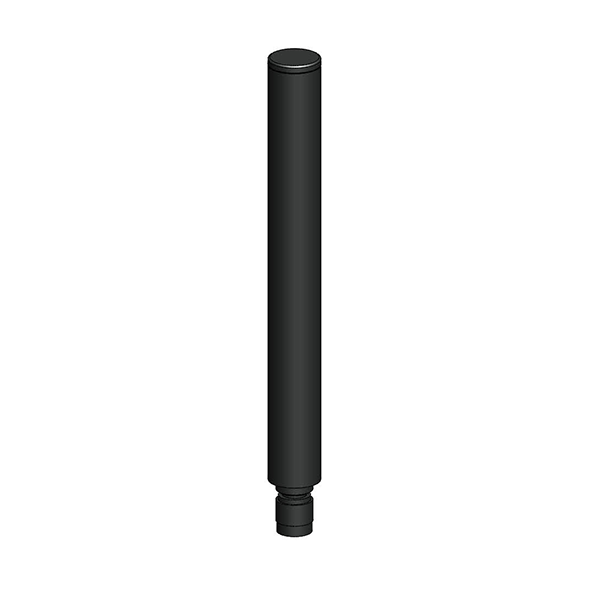

Half Wave Dipole 902-928 MHz, 2dBi
$275.00
Half Wave Dipole 902-928 MHz, 2dBi is a high performance vertical Omni antenna. An Omni antenna radiates 360° in the horizontal plane. Peak gain is usually on the horizon.
- Description
- Specifications
Description
Half Wave Dipole 902-928 MHz, 2dBi by Southwest Antennas is a high performance vertical Omni antenna. It is a broadband Omni half wave dipole antenna that operates at 902-928 MHz, and provides 2dBi of gain. An Omni antenna radiates 360° in the horizontal plane. Peak gain is usually on the horizon. All collinear Omni antennas are centre-fed, making them ground plane independent and providing stable radiation patterns across the band.
Half Wave Dipole 902-928 MHz, 2dBi features:
- Broad Band Coverage
- Half Wave Dipole
- 902-928 MHz
- 50W power handling
- 2dBi Omni Radiation Pattern
- Rugged Construction
- Low Glare
- Black Fiberglass Radome
- Plain End Cap
Types of Mounts
Four types of mounts are used to support almost all SWA Omni Antennas
- Standard Connector Mount: this light yet sturdy antenna is mounted directly by several connector options, allowing for a variety of applications. Most connectors are type N or TNC, male or female. SNA is also available.
- Flange Mount: A flanged mounting base makes an antenna ideal for many ground-based and airborne applications.
- Microwave Mag-Mounts: A strong moveable magnetic base for various vehicle uses.
- STC Mount: A mount designed specifically for airborne applications.
About Southwest Antennas
Southwest Antennas designs and manufactures high performance, broadband antennas and antenna accessories designed to be the critical link in today’s communication solutions. We offer over 500 antenna products and provide a full range of technical services from initial product concept to final product manufacture, covering markets including broadcast video, military, law enforcement, homeland security, surveillance, aerospace, asset tracking, oil and gas, UAV / drones, cellular communication, and more.
Founded in 2005 and headquarted in San Diego, California, the technical staff at SWA have over 75 years of combined experience designing RF and microwave antennas of all types, with employees specializing in electrical, mechanical, RF, and software engineering.
| Parameter | Value | Units | Description |
|---|---|---|---|
| Impedance | 50 | Ohms | |
| Minimum Frequency | 902 | MHz | |
| Maximum Frequency | 928 | MHz | |
| Maximum VSWR | <2:1 | ratio | Between Min and Max Freq |
| Gain | 2.0 | dBi | Max Gain |
| Max Input Pwr | 50 | Watts | Watts(Max) |
| Polarization | Vertical | ||
| Horizontal Beamwidth | 360 | Degrees | |
| Vertical Beamwidth | 73 | Degrees | |
| Connector Type | TNC(m) | ||
| Length | 7.75 | Inches | ± .13 |
| Diameter | .812 | Inches | +.020 | -.000 |
| Weight | 1.8 | oz. | |
| Max. Wind Velocity | 100 | Km/Hr |
