Dual-Band Omni Antenna, Half Wave Dipole, 2.1-2.5 / 4.4-5.9GHz, 2.1/2.5dBi, Integrated RF Coaxial Gooseneck
$189.00
Integrated 3″ RF Gooseneck with black chrome non-rotating black chrome TNC(m) RF connector.
- Description
Description

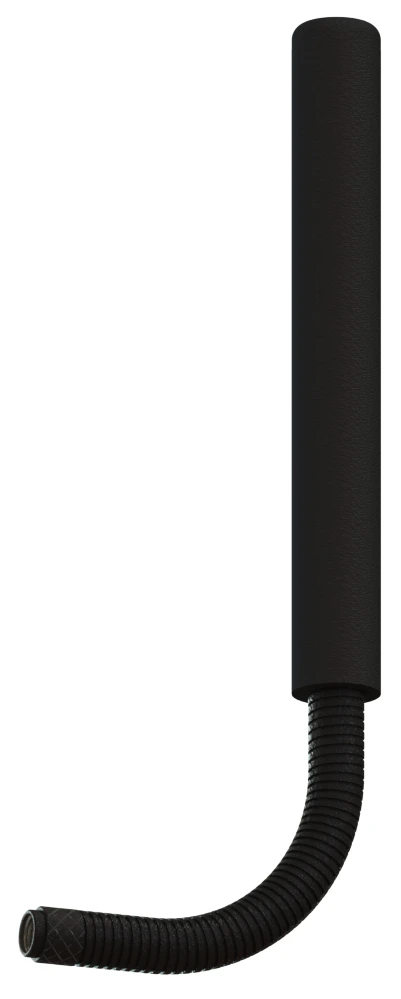

Dual-Band Omni Antenna, Half Wave Dipole, 2.1-2.5 / 4.4-5.9GHz, 2.1/2.5dBi, Integrated RF Coaxial Gooseneck by Southwest Antennas.
This dual band, half wave dipole omni antenna with a low band frequency range of 2.15 to 2.5 GHz and a peak gain of 2.1 dBi, and a high band frequency of 4.4 to 5.9 GHz and a peak gain of 2.5 dBi.
1001-071 features an integrated 3″ RF Gooseneck with black chrome non-rotating black chrome TNC(m) RF connector, which contributes to the improvement of RF link margin and overall antenna performance. Our proprietary antenna design and manufacturing process ensures optimum antenna RF performance.
The non-rotating TNC(m) RF connector can be easily secured or removed from equipment in the field by a single gloved hand, no tools required. The Black Chrome finish keeps the RF connector from reflecting light or being easily spotted in the field.
Antennas with integrated RF Goosenecks are ideal for handheld video receivers, portable radio systems, or any other mobile communication platform. The RF Gooseneck can be threaded through MOLLE gear or other tactical vest hardware for added security while moving.
A rugged flat black fiberglass radome provides protection from damage and gives the antenna a low visibility finish. The integrated RF Gooseneck allows the antenna to bend and deflect away from impacts during outdoor operations.
TNC(m) Non-Rotating Connector.
Features
- Dual-Band Coverage
- 2.1 – 2.5 GHz & 4.4 – 5.9 GHz
- 50W Power Handling
- 2.15 to 2.5 dBi Gain
- Omni Radiation Pattern
- Integrated 3″ RF Co-Axial Gooseneck Assembly
- Black Chrome Non-Rotating TNC(m) RF Connector
Specifications
Parameter | Value | Units | Tolerance |
---|---|---|---|
Antenna Pattern | Omni Antenna | ||
Frequency Band | S & C | ||
Impedance | 50 | Ohms | |
Frequency Range 1 | 2.1 – 2.5 2,100 – 2,500 |
GHz MHz |
|
Frequency Range 2 | 4.4 – 5.9 4,400 – 5,900 |
GHz MHz |
|
Maximum VSWR | 2:1 | Ratio | |
Maximum Gain | 2.5 | dBi | 2.15 dBi Low Band Max Gain |
Polarization | Vertical | ||
Low Band Horizontal (AZ) Beamwidth | 360 | Degrees | |
Low Band Vertical (EL) Beamwidth | 78 | Degrees | 2.1 – 2.5 GHz |
High Band Horizontal (AZ) Beamwidth | 360 | Degrees | |
High Band Vertical (EL) Beamwidth | 69 | Degrees | 4.4 – 5.9 GHz |
Ground Plane Required | No | ||
Radome Material | Fiberglass | ||
Color | Flat Black | ||
Spring or Gooseneck | Gooseneck | ||
Gooseneck Length | 3.000 / 76.200 | inches / mm | ±.06″ |
Gooseneck Diameter | 0.350 / 8.890 | inches / mm | ±.002″ |
Maximum Wind Velocity | 124 / 200 | mph / kph | |
RF Connector Type | TNC(m) Non-Rotating | ||
RF Connector Features | Black Chrome | ||
Product Height | 7.880 / 200.152 | inches / mm | ±.13″ |
Product Diameter | 0.562 / 14.275 | inches / mm | +.020″ / -.000″ |
Product Weight | 2.20 / 62.37 | oz / grams |
