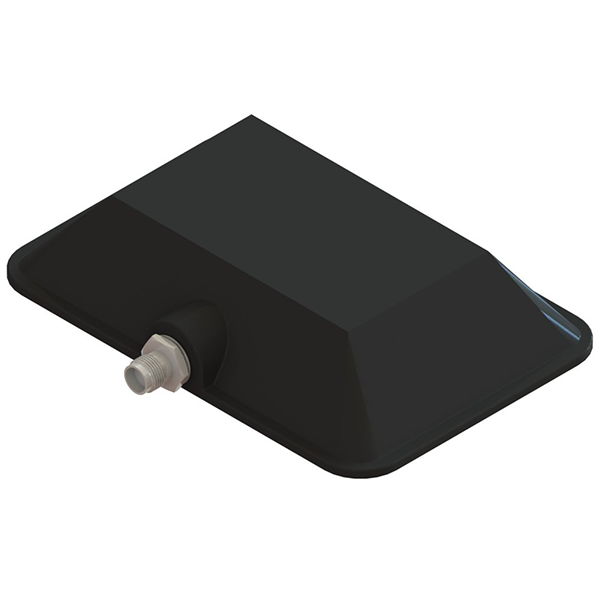

Single Element Panel Antenna, 1.7-2.5 GHz, 9dbi

$379.00

Single Element Panel Antenna, 1.7-2.5 GHz, 9dbi by Southwest Antennas.

Average lead time: 4 weeks.

SKU: 1004-023 Categories: , Tags: , , , , , ,
View cart

Description

Single Element Panel Antenna, 1.7-2.5 GHz, 9dbi by Southwest Antennas is a high performance broadband panel directional antenna. It operates at 1.7-2.5 GHz and provides 9 dBi of gain.



Features

  • Broadband Coverage
  • High Performance Vertically Polarized Panel Antenna Design
  • 1.7 – 2.5 GHz
  • 9 dBi Direcational Radiation Pattern
  • TNC(f) RF Connector
  • Black Kydex Radome
  • Black Anodized Ground Plane
  • Designed for L&S Band Communication in the Following Markets:
    • Law Enforcement
    • Surveillance
    • UAV & UGV Ground Stations



About Southwest Antennas

Southwest Antennas designs and manufactures high performance, broadband antennas and antenna accessories designed to be the critical link in today’s communication solutions. Founded in 2005 and headquarted in San Diego, California, the technical staff at SWA have over 75 years of combined experience designing RF and microwave antennas of all types, with employees specializing in electrical, mechanical, RF, and software engineering.

Parameter Value Units Description
Impedance 50 Ohms
Minimum Frequency 1700 MHz
Maximum Frequency 2500 MHz
Maximum VSWR 1.5:1 Ratio  15 dB Return Loss
Antenna Gain 9 dBi
Polarization Vertical
Azimuth Beamwidth 60 Degrees
Elevation Beamwidth 60 Degrees
Connector Type TNC(f)  Side Entry
Height 1.25 Inches
Length 4.18 Inches
Width 6.18 Inches
