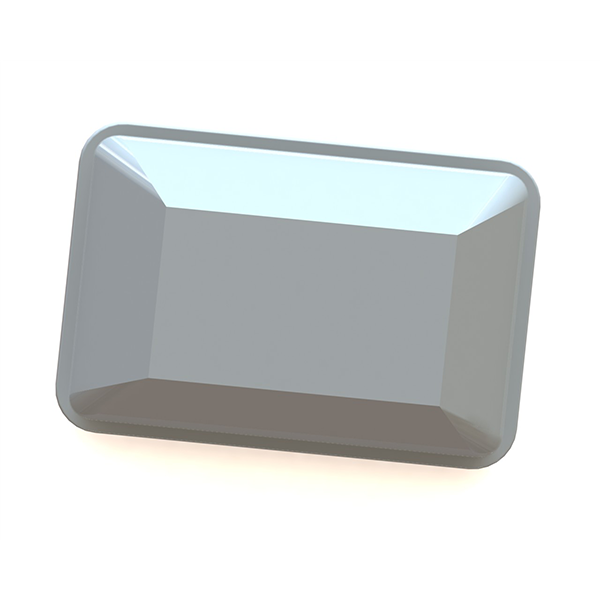

Broadband Single Element Panel Antenna 1.7-2.5 GHz, 9 dBi
$379.00
Designed for all broadband applications, especially outdoor point-to-point or point-to multi-point system.
- Description
- Specifications
Description
Broadband Single Element Panel Antenna 1.7-2.5 GHz, 9 dBi by Southwest Antennas.
This small, low loss antenna offers exceptional electrical performance (from 2% to 40% bandwidth at 10 to 15 dB return loss) and high efficiency in a cost effective, low height design. This antenna is designed for all broadband applications, especially outdoor point-to-point or point-to multi-point system.
Southwest Antennas provides robust reference designs which can be scaled over a broad range of frequencies to meet customer requirements. These antennas are specifically designed for products requiring a compact, radome enclosed antenna where a strong fashion statement is required.
Features
- Broad Band Coverage
- 1.7-2.5 GHz
- 9 dBi
- White Polycarbonate Radome
- Designed for L&S Band communication in the following markets:
- Law Enforcemetn
- Surveillance
- UAV & UGV Ground Stations
About Southwest Antennas
Southwest Antennas designs and manufactures high performance, broadband antennas and antenna accessories designed to be the critical link in today’s communication solutions. We offer over 500 antenna products and provide a full range of technical services from initial product concept to final product manufacture, covering markets including broadcast video, military, law enforcement, homeland security, surveillance, aerospace, asset tracking, oil and gas, UAV / drones, cellular communication, and more.
Founded in 2005 and headquarted in San Diego, California, the technical staff at SWA have over 75 years of combined experience designing RF and microwave antennas of all types, with employees specializing in electrical, mechanical, RF, and software engineering.
Parameter | Value | Units | Description |
---|---|---|---|
Impedance | 50 | Ohms | |
Minimum Frequency | 1.7 | GHz | |
Maximum Frequency | 2.5 | GHz | |
Maximum VSWR | ±1.5:1 | ratio | Between Min and Max Freq |
Gain | 9 | dBi | Max Gain |
Power | 100 | Watts | |
Polarization | Vertical | ||
Horizontal Beamwidth | 55 | Degrees | |
Vertical Beamwidth | 65 | Degrees | |
Connector Type | SMA(f) | ||
Length | 6.19 | Inches | ± 0.125″ |
Width | 4.19 | Inches | +.020 -.000 |
Weight | 4 | oz. | |
Max. Wind Velocity | 100 | Km/Hr |
