8.25mm 41HFOV f/2.6 (m12) Lens

$200.00

Supports the Kernel 14.4MP.

View cart

Description

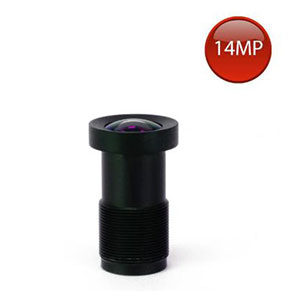

8.25mm 41HFOV f/2.6 (m12) Lens by MAPIR and Peau Productions.

Camera Supported: Kernel 14.4MP

Compatible with  MAPIR cameras that have a matching sensor resolution.

For Kernel, use the 14MP lenses with the 14.4MP sensor, and the 3MP with the 3.2MP sensor. For Survey3, use the 12MP lenses.



Specifications

Lens Focal Length: 8.25mm
35mm Equivalent Focal Length: 46.53mm
Native Sensor Size Supported: 1/2.3″
Aperture: f/2.6
Field of View: 50 x 40 x 30 degrees (Diagonal, Horizontal, Vertical)
Filter Installed: No Filter
Megapixel Rating: 20.0MP
Optical Distortion: <-1.0%
Hyperfocal (Infinity) Focus Distance: 206.45 inches (17.20 feet), 524.38 cm (5.24 m)
Lens Construction: 10 Glass Elements
Weight: 15g
Dimensions: 25.21mm Length, 12mm Diameter
