ND030 Neutral Density Filter

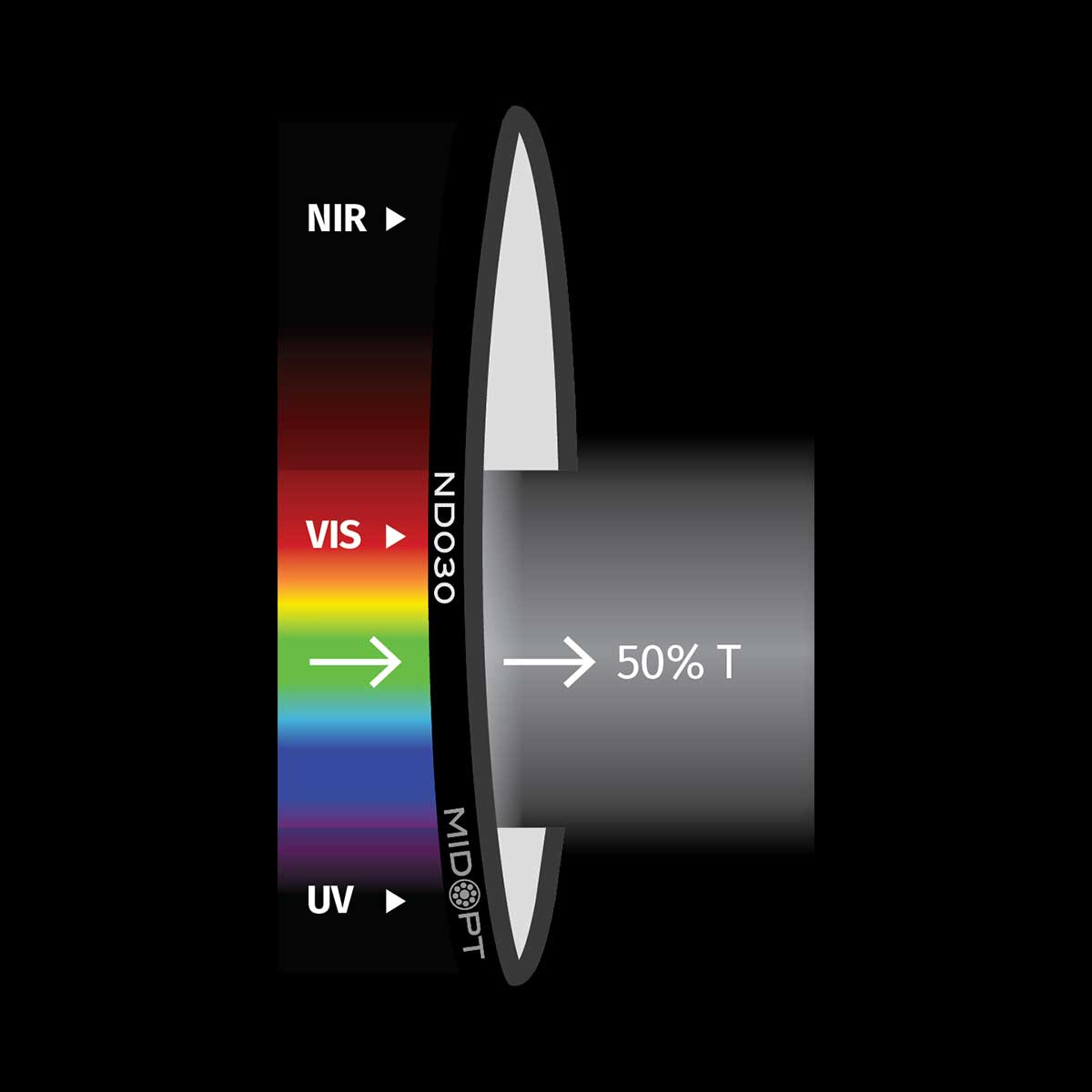

ND030 Neutral Density Filter absorptive neutral density filters have an optical density of 0.3, or approximately 50% transmission across the visible spectrum.
View cart
- Description
- Specifications
Description
ND030 Neutral Density Filter
ND030 absorptive neutral density filters have an optical density of 0.3, or approximately 50% transmission across the visible spectrum. These filters include identical male and female threads on either end so that they can be stacked with other ND filters to achieve various optical densities. For example, two ND030 filters stacked together would perform approximately the same as one ND060 filter.
- Useful Range : 425-675nm
- Optical Density : 0.3
- Transmission: 50%
- Tolerance : +/- 5.00%
- Surface Quality : 40/20
ND Series – Visible (VIS) Spectrum
- Absorptive filter effective from 425-675nm
- Available in optical densities ranging from 0.10-6.0
Neutral Density Filters serves as “sunglasses” for your system and can be used with monochrome or color cameras. Designed to reduce light intensity neutrally over a specific wavelength range without affecting image color or contrast.
- Available in a variety of optical densities
- Reduce light intensity while maintaining a wide aperture and shallow depth of field
- Minimize pixel saturation
- Can be stacked with other Neutral Density Filters to test various optical densities
- Exceptional surface quality; 40/20 scratch/dig
ND030 Neutral Density Filter Applications
Applications include imaging in intense lighting situations (i.e. molten metal and welding) outdoor aerial imaging and photography. Neutral Density Filters help reduce shutter speed to create blur, preventing a “jello” effect in aerial imaging.
Mount & Size Options
In-stock, ready-to-ship Neutral Density Filters are available in Threaded Mounts, sizes M13.25 to M105; 25.4 C-Mount; Slip Mounts; or Unmounted. Custom shapes and sizes are available.

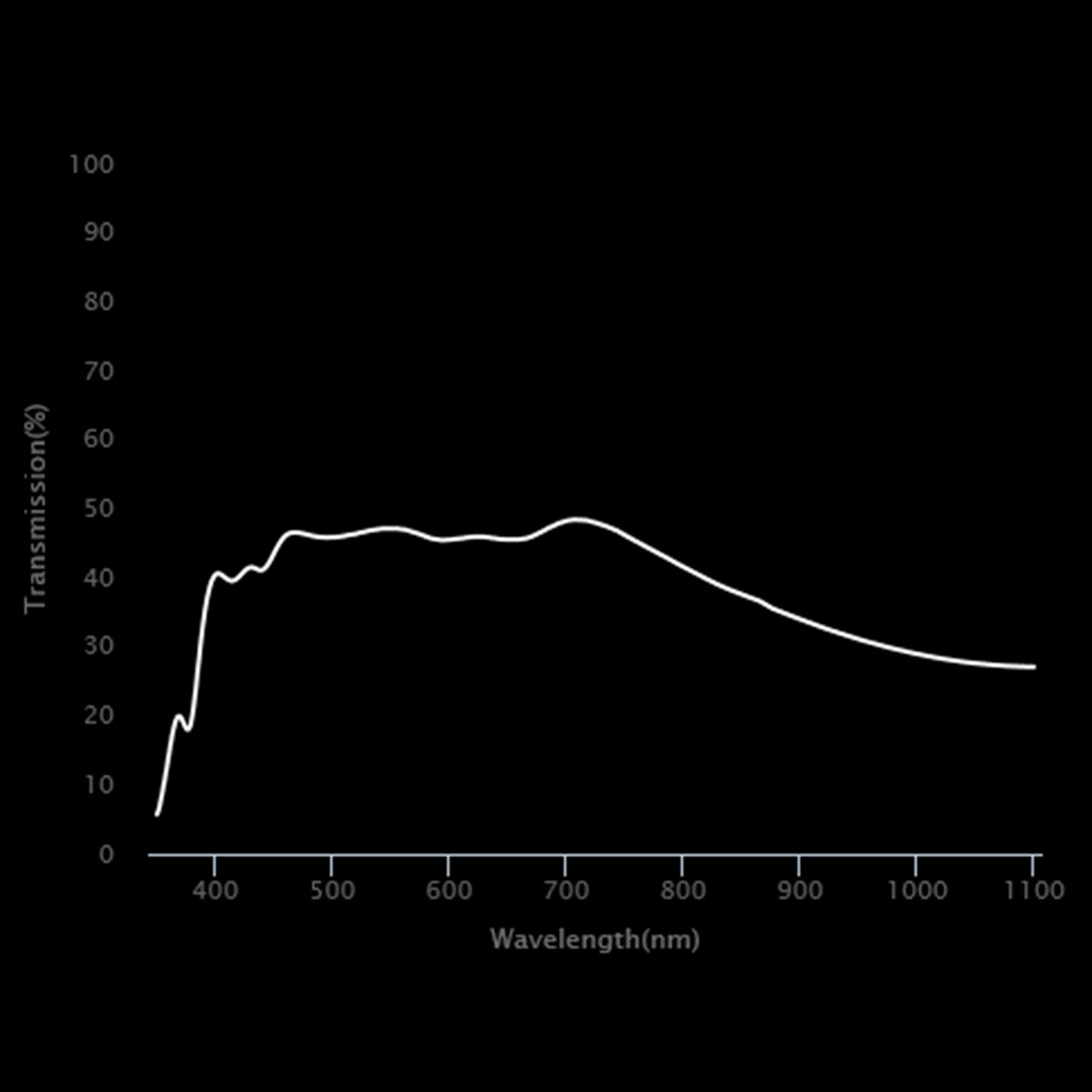

wavelength (nm) |
transmission (%) |
---|---|
1100 | 27.10 |
1090 | 27.15 |
1080 | 27.22 |
1070 | 27.33 |
1060 | 27.48 |
1050 | 27.64 |
1040 | 27.84 |
1030 | 28.08 |
1020 | 28.35 |
1010 | 28.67 |
1000 | 29.00 |
990 | 29.37 |
980 | 29.77 |
970 | 30.19 |
960 | 30.66 |
950 | 31.14 |
940 | 31.67 |
930 | 32.21 |
920 | 32.79 |
910 | 33.41 |
900 | 34.02 |
890 | 34.67 |
880 | 35.34 |
870 | 36.21 |
860 | 37.00 |
850 | 37.64 |
840 | 38.29 |
830 | 39.03 |
820 | 39.87 |
810 | 40.74 |
800 | 41.63 |
790 | 42.55 |
780 | 43.46 |
770 | 44.38 |
760 | 45.29 |
750 | 46.22 |
740 | 47.09 |
730 | 47.74 |
wavelength (nm) |
transmission (%) |
---|---|
720 | 48.23 |
710 | 48.43 |
700 | 48.26 |
690 | 47.63 |
680 | 46.78 |
670 | 45.97 |
660 | 45.60 |
650 | 45.57 |
640 | 45.72 |
630 | 45.95 |
620 | 45.95 |
610 | 45.72 |
600 | 45.54 |
590 | 45.57 |
580 | 46.01 |
570 | 46.60 |
560 | 47.05 |
550 | 47.15 |
540 | 47.09 |
530 | 46.80 |
520 | 46.38 |
510 | 46.08 |
500 | 45.90 |
490 | 45.91 |
480 | 46.23 |
470 | 46.58 |
460 | 46.15 |
450 | 43.54 |
440 | 41.16 |
430 | 41.53 |
420 | 40.14 |
410 | 39.84 |
400 | 40.49 |
390 | 34.05 |
380 | 19.76 |
370 | 19.90 |
360 | 14.21 |
350 | 5.71 |
